NORCAR a7240 MINILOADER FOR HIRE
NORCAR a7240 MINILOADER FOR HIRE
The a7240, a powerful machine with great ground clearance and high specifications as standard. The four-cylinder diesel engine and dual working hydraulic pumps provides a machine that is well equipped for a wide selection of attachments in different working situations. Multiple functions can be used simultaneously without interfering with each other, making work more efficient. The pulling force goes up to an impressive number of 1550 kg. Due to the design of the hydraulic system, the boom function is fast even at lower rpms, which provides a smoother and more silent work mode with a lower fuel consumption.
Turning Radius
Loading Height

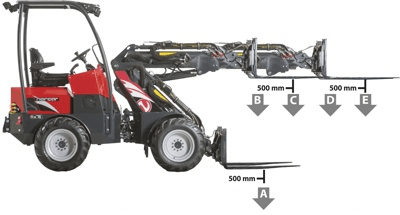

Tipping Load
| Tipping load | +extra weight 340kg | |||
|---|---|---|---|---|
| Tipping load with pallet fork | Straight | Articulated | Straight | Articulated |
| A. Transport position, kg | 1650 | 1200 | 2050* | 1600 |
| B. Boom horizontal, kg | 1580 | 1150 | 2270 | 1600 |
| C. Boom horizontal, kg | 1100 | 820 | 1690 | 1190 |
| D. Boom horizontal+ extension, kg | 810 | 570 | 1280 | 860 |
| E. Boom horizontal + extension kgal, kg | 670 | 480 | 1040 | 700 |
| *Limited by hydraulic |
Specifications
| Engine | |
|---|---|
| Make | Kubota |
| Model | 1505 Stage V |
| Cylinders | 4 |
| Fuel type | Diesel |
| Cylinder volume (cm³) | 1498 |
| Cooling system | Fluid |
| Power | |
|---|---|
| SAE, gross power (kW/hp) | 18,5/26 |
| Max gross torque (Nm) | 93 |
| At engine speed (r/min) | 1700 |
| Max engine speed without load (r/min) | 2300 |
| Electrical System | |
|---|---|
| Battery (V-Ah) | 12 - 53 |
| Generator (A) | 40 |
| Service Volumes | |
|---|---|
| Cooling System (l) | 6 |
| Engine Oil (l) | 5 |
| Fuel Tank (l) | 20 |
| Hydraulic Tank (l) | 45 |
| Hydraulic System Total Volume | 50 |
| Performance | |
|---|---|
| Lifting Power Hydraulic (kg) | 2150 |
| Breakout force 50cm (kg) | 1500 |
| Tipping load, straight (kg) | 1500 |
| Tipping load, articulated (kg) | 900 |
| Operating weight (kg) | 1790 |
| Drive speed low (km/h) | 0-9 |
| Drive speed high (km/h) | 0-19 |
| Pulling force high (kg) | 800 |
| Pulling force low (kg) | 1550 |
| Hydraulic System | |
|---|---|
| Working Hydraulics (l/min) | (18+32) 50 |
| System pressure (bar) | 240 |
| Drivetrain hydraulics (l/min) | 85 |
| Drivetrain max system pressure (bar) | 370 |
| Cycle Times | |
|---|---|
| Raising boom (s) | 4.2 |
| Lowering boom (s) | 2.6 |
| Folding in bucket (s) | 2.9 |
| Tipping bucket (s) | 2.2 |
| Steering wheel rotations (L/R rev) | 4/5 |
Standard equipment
- Roll bar ROPS/FOPS, seatbelt
- Working lights, front
- Electrically maneuvered parking brake/safety system
- Float on the lifting boom
- Hand throttle/Foot throttle
- Engine speed and hour meter, engine heat and fuel level gauges
- Suspension seat with armrest
- Adjustable steering column
- ProDrive

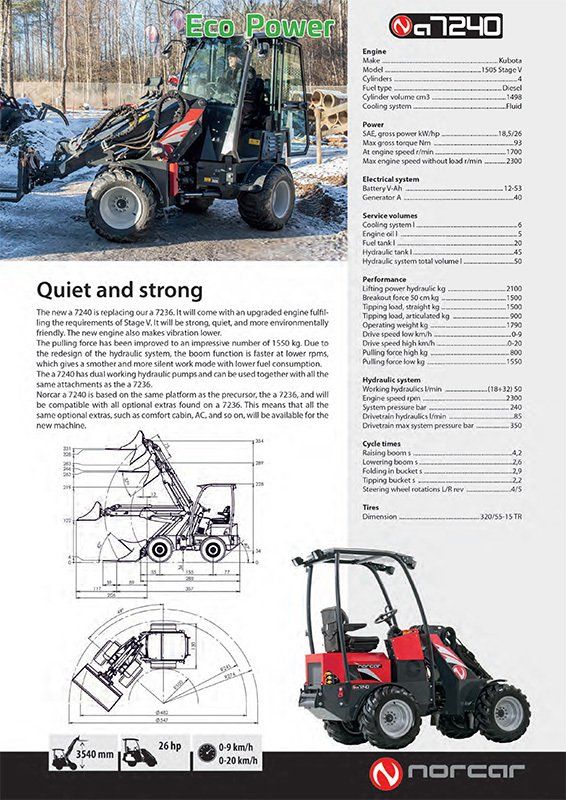

a7240 BROCHURE
VIDEO
Hiring a machine from Green Plant
Hiring a machine from Green Plant
To hire one of the machines on our hire fleet (see range below), please give us a call on 01483 235111
to check availability. All you need to provide us with is a copy of your "Hired In Plant Insurance", which machine you want to hire, the dates you require the machine and your credit card details (if you don't have a Green Plant account).
If you would like to apply for an account, please download and print the Green Plant UK account application form below and send it back to us.
Don't forget to advise us if you also need to hire a trailer.
On the day of hire your allocated machine will be available to collect from 8:00am. Sometimes we can offer you the added benefit of picking up the machine the afternoon before at no extra charge (dependant on machine availability) so you can get an early start if you want to. Please call for details.
*All Hire machines MUST be returned by 4:30pm on the last day of the hire (or 4:00pm on a Friday)*
