Dragon Equipment is an engineering company, devoted to, through innovation, designing and building products to revolutionise how we recycle, move and use materials on domestic and commercial sites.
Green Plant UK is the UK distributor for the Dragon Lifters and offers a full sales, hire, parts and aftercare service.
DRAGON LIFTER NEWS
Two Lifters
The Dragon LF750 is capable of lifting up to 750kg, whereas it’s wider counterpart the LF1000 can transport up to 1,000kg.
Dragon Distributor
Green Plant is the UK DRAGON distributor and offers a full sales, hire, parts and aftercare service on Dragon Lifter machines. Please contact us on 01483 235111
to discuss your requirements.
Competitive Finance Deals
We are able to offer competitive finance deals on new Dragon lifters Terms and Conditions apply.
Call 01483 235111
Buy a DRAGON Lifter
Green Plant UK is a UK Distributor for the Dragon Lifter. We offer a full sales, hire and aftercare service. To discuss your requirements, please call us on 01483 235111.
Service your DRAGON lifter
Green Plant UK offers health checks and full servicing on all machines by qualified engineers to provide you with the backup you need.
Parts for the DRAGON Lifter
Green Plant offers a full Parts and Spares service for Dragon Lifters and is usually able to deliver you your parts overnight. Please call our Parts Team on 01483 235111
or visit our on-line parts shop.
DRAGON LIFTERS

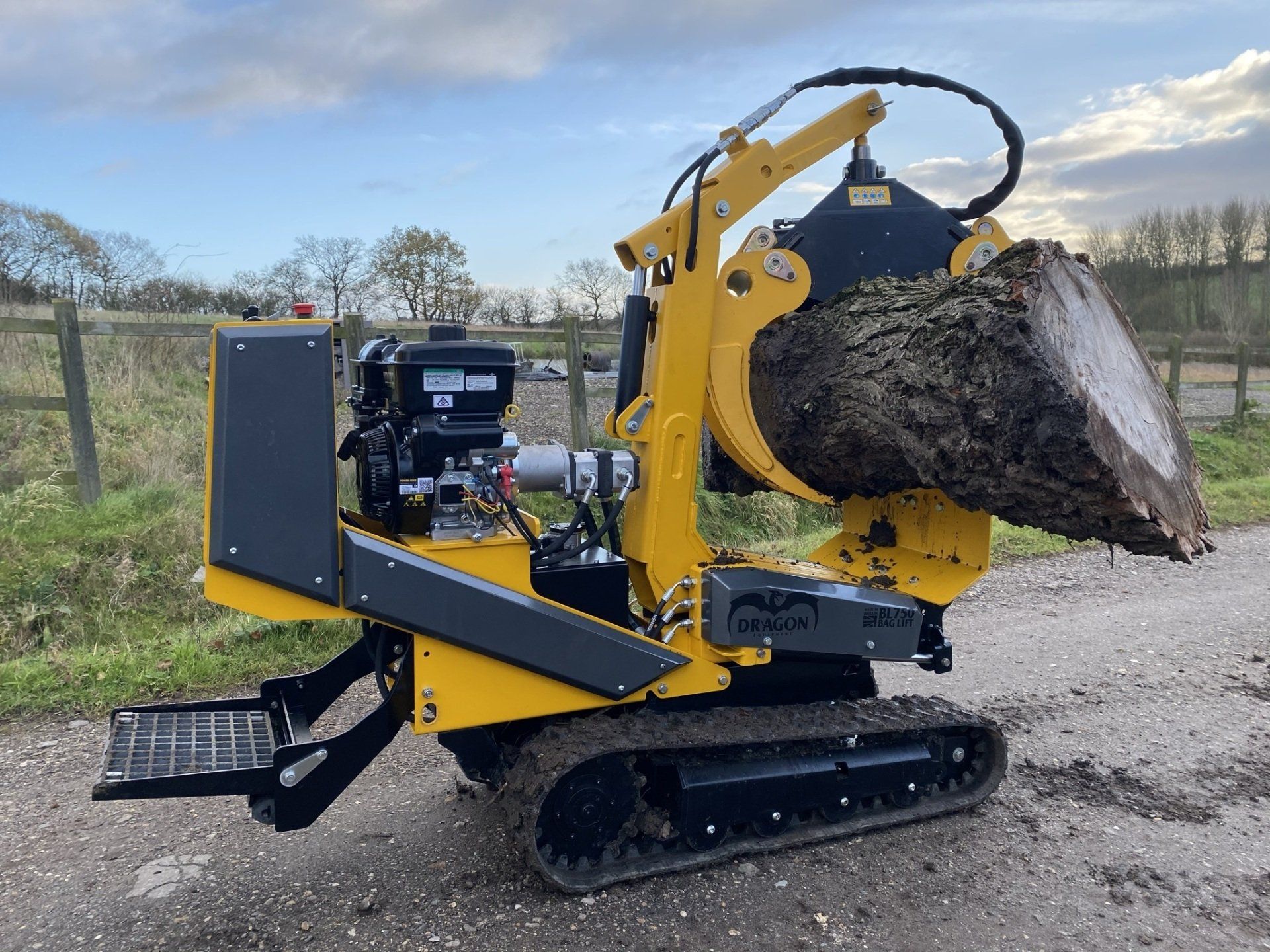

Whether you’re moving logs, bags of sand or pallets of slabs, the versatile and compact Dragon Lifters make transporting materials around site quicker, easier and safer. The LF750 is capable of lifting up to 750kg, whereas it’s wider counterpart the LF1000 can transport up to 1,000kg.
FLEXIBLE POWER OPTION

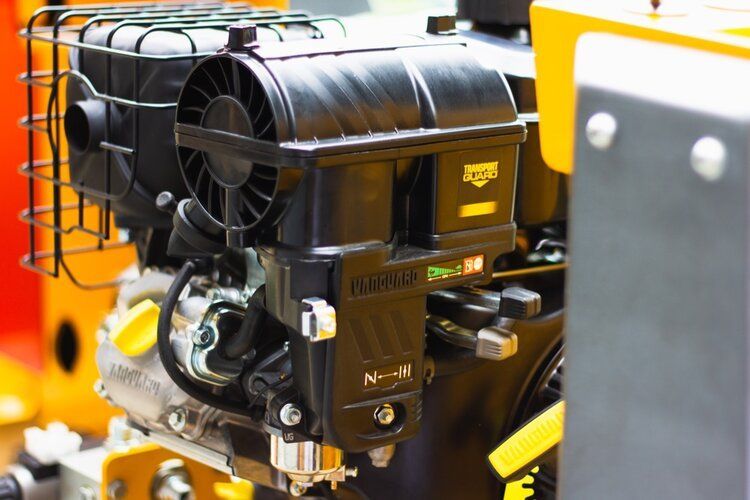

The Dragon Lifters are available with the Vanguard 400, 14HP petrol engine from Briggs & Stratton or the Hatz 1B50 Diesel engine, they are also available as a Hybrid machine.
BUILT-IN SAFETY FEATURES

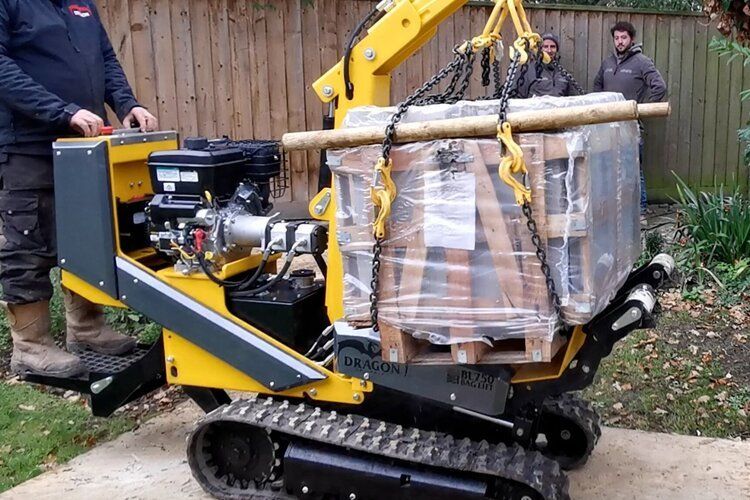

Both machines have a front stability foot, which doubles-up as a load stabiliser when tracking. They also both have a raised platform for the operator to stand on to ensure optimum operating visibility.
MOBILE AND COMPACT

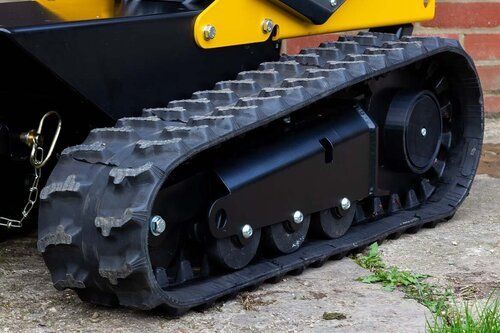

All terrain tracks allow the Dragon Lifters to be used in all conditions on any building site or home based project. For ease of transport both machines weigh under 630kg, and will fit in most trailers or vans.
NARROW ACCESS

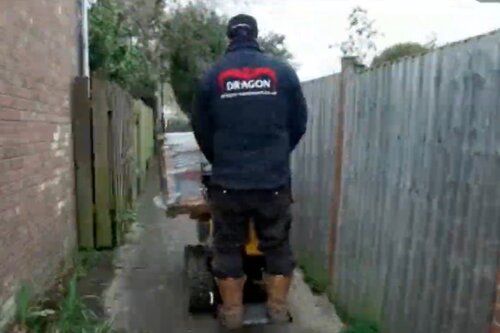

The LF750 is just 700mm wide so will fit through a standard doorway, even the LF1000 at just 840mm wide is perfect for jobs where access is narrow or restricted.
INTERCHANGEABLE

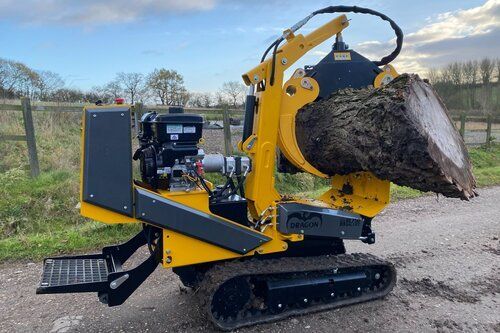

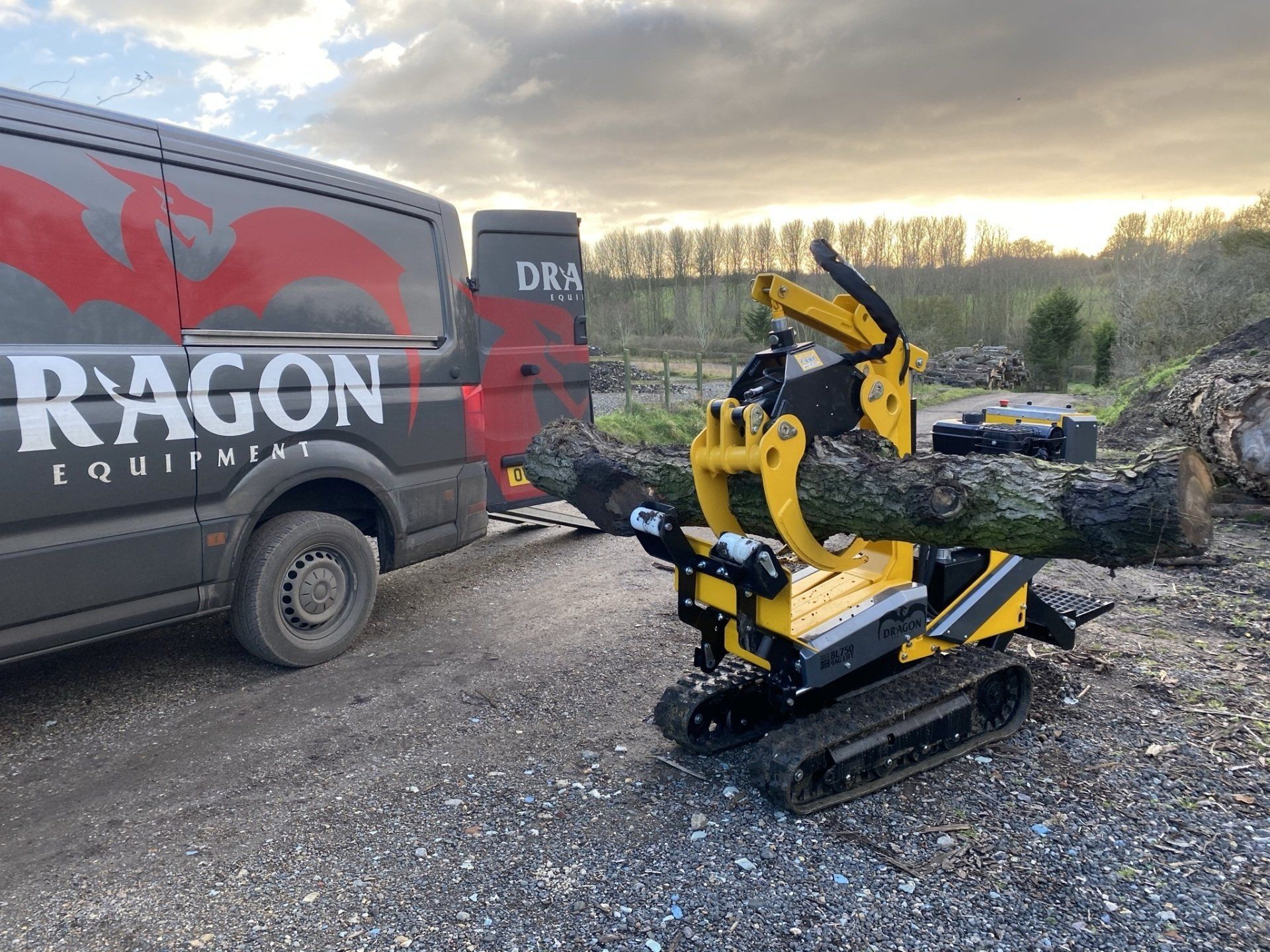

The lifting arm can quickly and easily have additional attachments added, such as a log grab or post hole borer etc. - with new attachments coming soon
SIMPLE CONTROLS

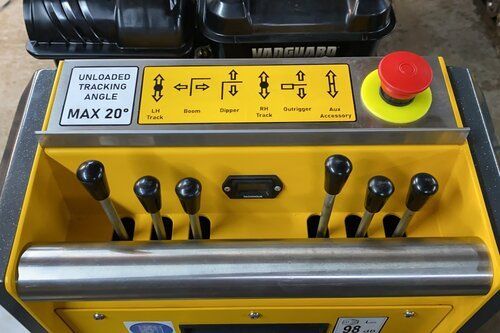

Regardless of which attachment is being used, the simple, universal and robust controls make the machine even easier to master.
SPECIFICATIONS
| Dragon Lifter | LF750 | LF1000 |
|---|---|---|
| Width | 700mm | 840mm |
| Length | 2000mm | 2000mm |
| Height | 1690mm | 1690mm |
| Weight | 630kg | 630kg |
| Max Lift Height | 750kg | 1000kg |
| Engine Power | Petrol 10kw or Diesel 9kw | Petrol 10kw or Diesel 9kw |
| Start | Electric and pull | Electric and pull |
| Fuel | petrol, diesel or hybrid | petrol, diesel or hybrid |
| Ground Pressure | 3.3 PSI unladen and 7 PSI carrying 750Kg | 3.3 PSI unladen and 8.5 PSI carrying 1000Kg |
