TW PTO/100G

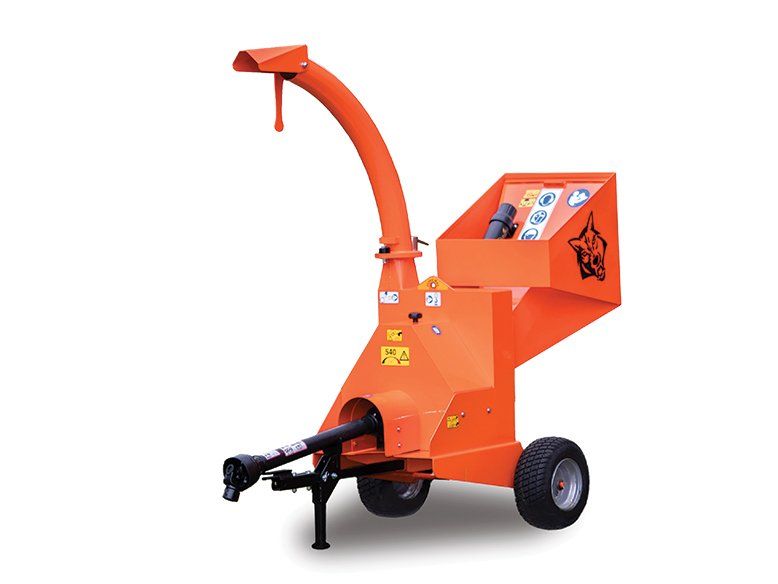

TIMBERWOLF TW PTO/100G WOOD CHIPPER

Timberwolf TW PTO/100G wood chipper - sales parts support from Green Plant
  • 100mm (4”) cutting performance
  • 3-Point Linkage not required
  • Positive blade feed

The Timberwolf TW PTO/100G is a versatile 4” wood chipper for a council, golf course or farmer, suitable to work with any small tractor or power unit (18-40hp). With a low centre of gravity, easy tow chassis and good ground clearance, this machine has a positive blade feed action, large feed funnel and the ability to quickly process 75mm to 100mm (3”- 4”) diameter material at up to 1.5 tonnes per hour.


 The PTO/100G has been designed for use by the medium to large estate and landscape gardener has access to a compact tractor with a 6- spline 540rpm power-take-off shaft. Ideally suited to tractors from 18hp to 40hp, it will easily tackle branches from 75mm (3”) to 100mm (4” diameter) depending on tractor horsepower. The machine is fitted to a ‘slow speed’ chassis and does not require the use of the three-point linkage.

SPECIFICATIONS

TW PTO/100G Specifications
Engine 18 - 40hp @PTO (540rpm)
Fuel N/A
Tank Capacity N/A
Weight 268kg
Length 1935mm (tray up) 2460mm (tray down)
Width 1000mm
Height 2050mm
Max Diameter Infeed 100mm
Throughput Up to 1.5 tonnes per hour
Feed Method Positive blade feed
Blades 2 x 177mm (7") fully hardened

PHOTOS

VIDEO

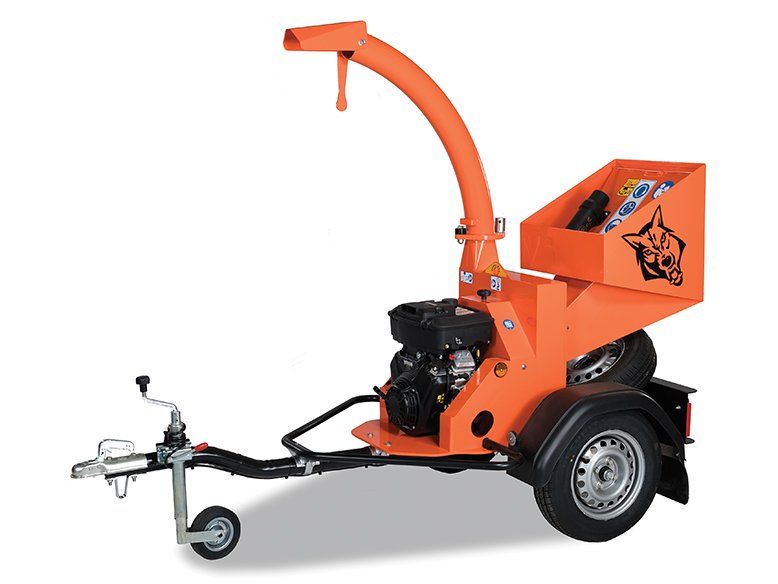

OTHER GRAVITY FED AND PTO TIMBERWOLF CHIPPERS
